A powerful high-capacity and fast-sampling power quality recorder that captures all events and waveforms on all channels all the time. Available as a stand-alone recorder or a complete kit with all accessories and 4x 400A clamp-on current probes.
A powerful high-capacity and fast-sampling power quality recorder that captures all events and waveforms on all channels all the time. Available as a stand-alone recorder or a complete kit with all accessories and 4x 400A clamp-on current probes.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

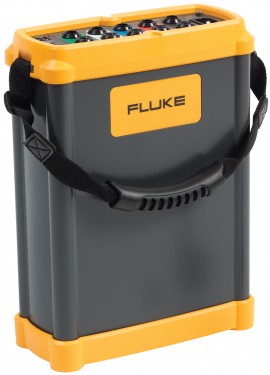

Record three-phase power quality and monitor for power quality disturbances with the new Fluke 1750 Three Phase Power Recorder and the Fluke Power Analyzer software. These power meters automatically record every power quality parameter and event, on every cycle - all the time.
Never miss capturing a disturbance - with the exclusive threshold-free measurement system, it's automatic. Capture every measurement, every event, on every cycle, all the time with the Fluke 1750 Three Phase Power Recorder. Unprecedented accuracy and resolution provide complete visibility into your distribution system. The recorder automatically detects, scales, and powers current probes without needing batteries.
Requiring only single-lead voltage connections enables safe and quick setups. Once power is applied the instrument automatically begins recording and LEDs give you assurance that the recorder is powered up and signals are within range - no more uncertainty that data is being recorded. The Fluke 1750 Three Phase Power Quality Recorder has an exclusive capture algorithm which makes certain all events are captured without the tedious setups and blind spots associated with threshold driven equipment.
The PDA wirelessly interfaces with the recorder, allowing quick setup and verification with waveform displays, meter screens, and phasor diagrams. The built-in wireless technology allows you to control multiple instruments from a distance easily, without the need for a laptop computer (laptops can also be used when desired).
| Battery Life | 1 hours |
| CAT III Rating | 1000v |
| CAT IV Rating | 600v |
| Current AC Accuracy | 0.1% full scale + 0.2% reading |
| Current Inputs | 5 |
| Dimensions | 215 mm x 310 mm x 35 mm (8.5 in x 12.2 in x 3.5 in) |
| High Speed Capture Rate | 5mhz |
| IP Rating | ip30 |
| Memory | 2 |
| Operating Temperature | 0 °c to 40 °c |
| Sample Rate | 12.8/15.36 |
| Storage Temperature | -20 °c to 50 °c |
| Typical Recording Period | 30 |
| Voltage AC Accuracy | 0.1% range + 0.2% reading |
| Voltage Inputs | 4 |
| Weight | 6.3 kg (14 lb) |
The new Fluke Power Analyze software revolutionizes your ability to analyze data. No need to worry about thresholds - with Fluke Power Analyze, thresholds can be modified after the data is recorded! And the easy-to-use user interface will display voltage as a phase-to-phase or phase-to-neutral reading.
Apply thresholds to data after collection using a variety of standard or customized templates.Simplified report writer feature included in Fluke Power Analyze.
Click on a category to view a selection of compatible accessories with the Fluke 1750 Series of Power Quality Recorders.
| Battery Life | 1 hours |
| CAT III Rating | 1000v |
| CAT IV Rating | 600v |
| Current AC Accuracy | 0.1% full scale + 0.2% reading |
| Current Inputs | 5 |
| Dimensions | 215 mm x 310 mm x 35 mm (8.5 in x 12.2 in x 3.5 in) |
| High Speed Capture Rate | 5mhz |
| IP Rating | ip30 |
| Memory | 2 |
| Operating Temperature | 0 °c to 40 °c |
| Sample Rate | 12.8/15.36 |
| Storage Temperature | -20 °c to 50 °c |
| Typical Recording Period | 30 |
| Voltage AC Accuracy | 0.1% range + 0.2% reading |
| Voltage Inputs | 4 |
| Weight | 6.3 kg (14 lb) |
The new Fluke Power Analyze software revolutionizes your ability to analyze data. No need to worry about thresholds - with Fluke Power Analyze, thresholds can be modified after the data is recorded! And the easy-to-use user interface will display voltage as a phase-to-phase or phase-to-neutral reading.
Apply thresholds to data after collection using a variety of standard or customized templates.Simplified report writer feature included in Fluke Power Analyze.
Click on a category to view a selection of compatible accessories with the Fluke 1750 Series of Power Quality Recorders.
