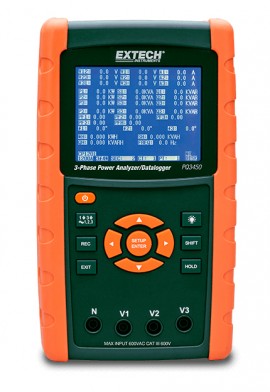

Extech PQ3450 3-Phase Power Analyzer/Data Logger

Model: PQ3450 | UPC: 793950334508

Extech PQ3450 3-Phase Power Analyzer/Data Logger-

Downloads:

Extech PQ3450 3-Phase Power Analyzer/Data Logger

Model: PQ3450

Data logging power analyzer provides full system analysis with up to 35 parameters and logs up to 30,000 readings on a removable SD memory card. Current transformers sold separately.

Data logging power analyzer provides full system analysis with up to 35 parameters and logs up to 30,000 readings on a removable SD memory card. Current transformers sold separately.

Your Price $2580.00 CAD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PQ3450 3-Phase Power Analyzer/Data Logger

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PQ3450 3-Phase Power Analyzer/Data Logger

Recommended Accessories

Extech PQ1000 Voltage Test Leads, Set of 4-

Extech PQ1000 Voltage Test Leads, Set of 4

PQ1000

Extech PQ3110 Current Clamps, 100A, Set of 3-

Extech PQ3110 Current Clamps, 100A, Set of 3

PQ3110

Extech PQ3450 Offers

Features

  • Large dot-matrix, sun-readable, numerical, backlit LCD
  • Full system analysis with up to 35 parameters
  • V (phase-to-phase), V (phase-to-ground)
  • A (phase-to-ground)
  • KW / KVA / KVAR / PF (phase)
  • KW / KVA / KVAR / PF (system)
  • KWH / KVAH / KVARH / PFH (system)
  • Phase angle
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar

Applications

  • Electrical and mechanical maintenance
  • Automotive
  • Aerospace

Extech PQ3450 Specifications

 RangeBasic Accuracy
ACV (True rms)600.0V±(0.5%rdg+0.5V)
ACA1200A±(0.5%rdg+0.5A)
Active Power (MW)9.999MW±(1.0%rdg+0.008MW)
Apparent Power (MVA)9.999MVA±(1.0%rdg+0.008MVA)
Reactive Power (MVAR)9.999MVAR±(1.0%rdg+0.008MVAR)
Power Factor0.00 to 1.00±0.04
Frequency Range45Hz to 65Hz±0.1Hz
Phase-180° to +180.0°±1°
Current Clamp input200mV 300mV 500mV±(0.5%rdg+5d)
1V 2V 3V; user-selectable
Active Power Energy (MWH)0.0kWh to 9.999MWH±(2.0%rdg+0.008MWH)
Apparent Power Energy (MVAH)0.0KVAh to 9.999MVAH±(2.0%rdg+0.008MVAH)
Reactive Power Energy (MVARH)0.0kVARh to 9.999MVARH±(2.0%rdg+0.008MVARH)
Datalogging30000 readings (2GB SD memory Card)
CE/CAT ratingCE/CAT III-600V
Dimensions8.86 x 4.92 x 2.52" (225 x 125 x 64mm)
WeightMeter: 2.2lbs (1010g)
Click here for complete specifications on the Extech PQ3450

What's included with the Extech PQ3450

  • 4 Voltage Leads with Alligator Clips
  • 8x AA Batteries
  • SD Card
  • 100-240 Volt AC Adaptor
  • Case

Accessories

Click on a category to view a selection of compatible accessories with the Extech PQ3450 3-Phase Power Analyzer/Data Logger.

Extech PQ1000 Voltage Test Leads, Set of 4 PQ1000
The PQ1000 is a CAT IV Test Lead Accessory Kit for the PQ3400 power analyzer series. Includes a set of 4, 10ft test leads with shrouded banana plugs on both ends, test probes, alligator clips, and long reach spring loaded clips.
$230.00 CAD

Learn More
Extech PQ3110 Current Clamps, 100A, Set of 3 PQ3110
The PQ3110 is a Clamp probe kit for Extech meters. Comes with three clamps. For use with PQ3350 power quality analyzer.
$925.00 CAD

Learn More
