The PowerXplorer PX5-400 power quality analyzer was designed specifically for measuring and monitoring power on both 50/60 and 400Hz power systems on ships, aircraft and submarines.
The PowerXplorer PX5-400 power quality analyzer was designed specifically for measuring and monitoring power on both 50/60 and 400Hz power systems on ships, aircraft and submarines.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
The Power Xplorer integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The unique measurement capabilities of the Power Xplorer include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize non-sinusoidal and unbalanced systems.

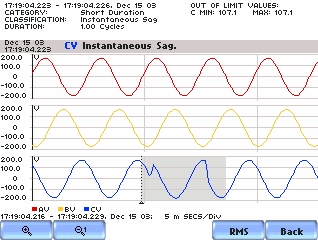

This interface standard for shipboard systems is the approved testing protocol for naval sea standards and all relevant departments within the US DOD. The electric power system serves a variety of user equipment including aircraft elevators, communication systems, weapon systems, and computers. The testing protocol is used to verify compatibility with a prescribed list of characteristics and tolerances--transients, sags and spikes, unbalance, frequency tolerances and characteristics and harmonics. Recommended testing apparatus-a voltmeter, frequency meter, oscilloscope, harmonics meter, and current transformers-can all be replaced with one instrument, the Power Xplorer PX5-400.

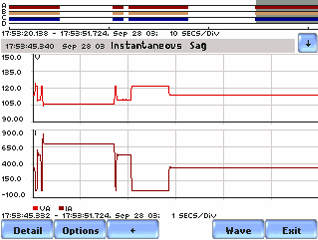

Equipment being used in these applications must be tested in all operating modes, including 400 Hz, to ensure that critical test and operational equipment fits with the power supply. The Power Xplorer PX5-400 collects a range of parameters-from load-related factors such as watts, VA, VAR, frequency instability, power factor and load excursions-to power quality information including sags, swells, transients and harmonics. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing.

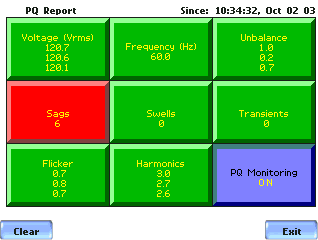

The Power Xplorer PX5-400's unique annunciator "report card" provides instant power quality answers in the field. A wide range of power monitoring data is collected, analyzed and tabulated in color-coded categories to quickly identify areas of concern, which are identified in red. Drill down for more detailed information by simply touching the intuitive touch screen to locate the source and pinpoint the root cause of power quality disturbances.

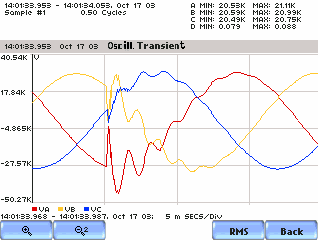

The Power Xplorer PX5-400 uses digitized high-speed sampling to capture and analyze microsecond-wide transients (Dranetz 658-like and BMI 8800-like). Transients, generated by fast-switching electronics, computer systems, aircraft components, and load transfer are immediately characterized as impulsive or oscillatory and detailed for further analysis. The Power Xplorer PX5-400 delivers a full profile, with events time stamped to the millisecond of the entire transient, to pinpoint the exact source and cause of the event.

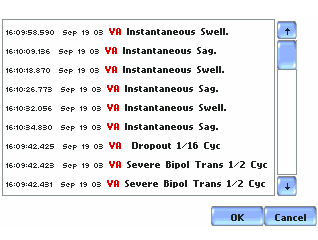

The Power Xplorer PX5-400 has a built-in event characterizer that labels events to directly support troubleshooting and the gathering of survey data-for improving power quality and equipment reliability, as well as for matching the requirements and susceptibilities of that equipment to the incoming supply. Plus, the Power Xplorer PX5-400 captures detailed harmonics, interharmonics and subharmonics to effectively troubleshoot the complex problems caused by these events.

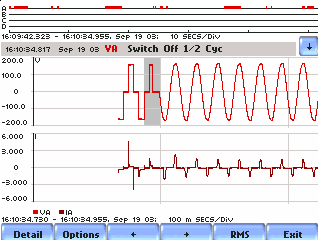

Evaluating and testing the performance of military components and computerized systems under true operating conditions-400 Hz or other-is key to ensuring a successful mission. The Power Xplorer PX5-400 incorporates advanced features such as RMS triggers, advanced transient capture, and cross triggering between channels to ensure that all equipment is working properly. Plus, real time reading observing during testing, startup and maintenance enable users to see results and tweak equipment on the fly.
| Measured Parameters | |
| Differential Inputs | 1 to 600Vrms, AC/DC; 0.1% rdg. + 0.05% FS; 256 samples/cycle; 16-bit ADC |
| Inputs with CTs | 0.1 to 6000Arms CT-Dependent, AC/DC; 0.1% rdg. + CTs; 256 samples/cycle; 16-bit ADC |
| Sampling | 1MHz high-speed sampling, 14-bit ADC, 1% FS |
| Frequency Range | 10MHz resolution, 15 to 20Hz, 45 to 65Hz or 350 to 450Hz |
| Phase Lock Loop | Generator tracking; standard PQ mode |
| General Specifications | |
| Available Languages | English, French, Italian, German, Spanish, Swedish, Chinese, Finnish |
| Dimensions | 12 x 2.5 x 8in (30 x 6.4 x 20.3cm) |
| Weight | 4.2lbs (1.9kg) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 4 to 131°F (-20 to 55°C) |
| Humidity | 10 to 90% non-condensing |
| System Time | Clock-crystal controlled; 1-second resolution |
| Charger/Battery Eliminator | 90 to 264VAC, 47 to 63Hz |
| Display | LCD color touch screen |
| Memory Options | 256M removable compact flashcard |
DRAN-VIEW is a powerful, yet simple to use tool to visualize and analyze complex power quality events, locate faults, isolate potentially harmful trends, and correlate data among and across sites.
Detailed analysis of Power Quality and/or Energy data from nearly any recent products from Dranetz. These are not just screen captures, this is advanced analysis of sample points recorded and saved by the Dranetz and presented in various forms including Time Plots, Event Lists and Event detail. Due to the advanced design of the Dranetz event database Time Plots and Event Detail graphs can be zoomed in to get to the real details information.
DRAN-VIEW runs on your Windows operating system. The data file is read by the PC via memory card / reader or direct connect interface. Launch Windows and simply select File>Open and locate the data file you wish to analyze.
