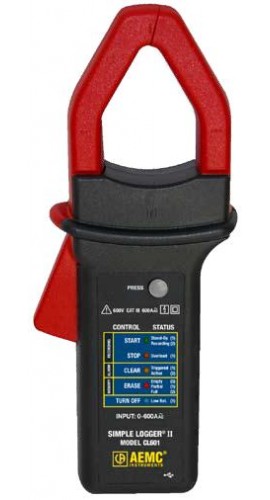

One channel, data logging clamp meter that records up to 240,000 TRMS current measurements is designed for plant and field service applications and for use in harsh environments.
One channel, data logging clamp meter that records up to 240,000 TRMS current measurements is designed for plant and field service applications and for use in harsh environments.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.
The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.
Not what you're looking for? Let’s do a search and help you find what you need.
Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples.
The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
Features
Applications
| Channels | One |
| Input | Split CT – AC Current |
| Measurement Range | 0 to 600A AC |
| Resolution | 0.1A |
| Accuracy (50/60Hz) | 0 to 5A: unspecified 5 to 50A: ±(1% of Reading + 1A) 50 to 400A: ±(1% of Reading + 0.5A) 400 to 600A: ±(3% of Reading + 1A) |
| Sample Rate | 64 samples/cycle |
| Storage Rate | Programmable from 8 every second to 1 every day |
| Storage Modes | Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView® |
| Memory | 240,000 measurements (512KB) Stored in non-volatile memory and retained even if the battery is low or removed |
| Communication | USB 2.0 optically isolated |
