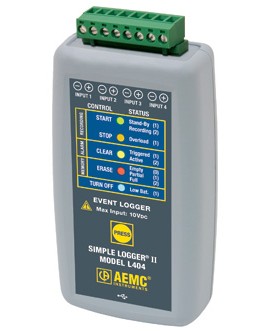

AEMC L404 Event Logger Simple Logger II

Model: L404 | Order No: 2126.29 | UPC: 685338140422

AEMC L404 Event Logger Simple Logger II-

AEMC L404 Event Logger Simple Logger II

Model: L404 | Order No: 2126.29

4-Channel, Event Logger, DataView Software.

4-Channel, Event Logger, DataView Software.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

AEMC L452 DC Current/Voltage Data Logger, 100mV/1V/10V DC-

AEMC L452 DC Current/Voltage Data Logger, 100mV/1V/10V DC

Model: L452 | Order No: 2153.51

This Bluetooth-enabled logger and event counter records DC voltage, DC current, and 4 to 20mA pulse counts. Features two input channels that allows the user to connect the Data Logger to various types of sensors as pressure, temperature, flow, humidity, and more.

Learn More

The AEMC Simple Logger® II Model L404 is a four channel event data logger. It is a cost effective, advance design data logger incorporating features and functions not found in data loggers costing 2 to 3 times its price. Event data is stored only as the event occurs. It works with dry contact closure or 0-3 and 0-5VDC logic levels.

An internal memory allows storing over 50,000 events; more than enough for most data collection needs. Event measurement scaling is user programmable. Battery operation and compact size allows for installation in tight locations without the need for external power. A series of front panel LEDs provide a quick status of the logger’s state and memory usage.

DataView® application software is included, providing real-time viewing of measurement data, even while recording. Instrument configuration, data storage and report generation from a pre-defined template or operator custom designed templates are also standard features.

Applications

  • Determine machinery run/down times
  • Determine event sequencing
  • Count events and record
  • Record event duration

Specifications

Simple Logger II Model L404
Channels Four
Input Captive MiniFlex AC Current Flexible Sensors
Range 0.5 to 100AAC 5 to 1000AAC
Accuracy (50/60Hz) 0 to 1A unspecified 1 to 100A: ±(1% of Reading + 0.5A) 0 to 5A unspecified 5 to 1000A: ±(1% of Reading + 1A)
Resolution 0.1A
Sample Rate 64 samples/cycle
Storage Rate Programmable from 125ms to 1 day
Storage Technique Start/Stop, FIFO and Extended Recording Mode (XRM)
Recording Length 15 minutes to 8 weeks, programmable using DataView
Memory 240,000 measurements (512kB). Recorded data is stored in non-volatile memory and retained even if battery is low or removed.
Communication USB 2.0 optically isolated
Power Source 2x1.5V AA-cell alkaline batteries
Battery Life 100 hrs to > 45 days (dependent on storage rate/recording length)
MECHANICAL
Dimensions 4.95 x 2.75 x 1.28" (136 x 70 x 32mm) w/o Sensor
Weight 8.67 oz (245g) with battery
Sensor/Cable Length Sensor: 6" (152mm) / Cable: 6 ft (2m)
Case UL94-V0
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)
ENVIRONMENTAL
Operating Temp. 14° to 122°F (-10° to 50°C)
Storage Temp. -4° to 140°F (-20° to 60°C)
Relative Humidity Up to 85% at 95°F (35°C), Non-condensing
Altitude 2000m
SAFETY & ELECTRO-MAGNETIC COMPATIBILITY
Safety Rating EN61010-1; 600V CAT III; 300V CAT IV; Pollution Degree 2
Protection Degree IP40
Electro-Magnetic Compatibility EN 61326-1; 07/1997 (+A1 10/1998, +A2 09/2001, +A3 05/2004)

Key Features

  • Four input channels
  • Works with dry contact closure or 0-3 and 0-5VDC logic levels
  • Programmable storage rates from 8 every second to 1 every day
  • Stores up to 50,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes DataView® software for data storage, real-time waveform display, analysis and report generation
  • USB cable and batteries included
  • EN 61010-1; 50V CAT III

What's included with the AEMC Instruments L404

  • AEMC L404 Event Logger Simple Logger II
