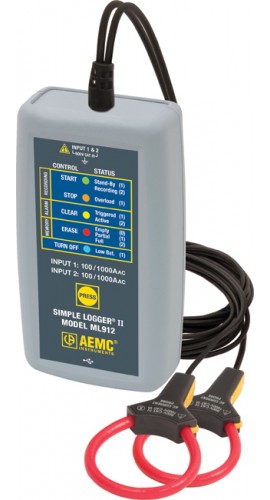

Two channel AC recording logger includes two integral MiniFlex flexible current probes that measure from 0.5A to 1000A TRMS. Stores up to 240,000 measurements.
Two channel AC recording logger includes two integral MiniFlex flexible current probes that measure from 0.5A to 1000A TRMS. Stores up to 240,000 measurements.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Current Dataloggers category for similar products.
Or let's do a search and help you find what you need:
Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples (Harmonics are only available from the Simple Logger® II Control Panel within the DataView® software).
TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software. Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information.
An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instruments internal memory to the computer for analysis.
Features
Applications
| Channels | Two |
| Input | Captive MiniFlex® AC Current Flexible Sensors |
| Range and Accuracy | 0.5 to 100A AC: 0 to 1A unspecified 1 to 100A: ±(1% of Reading + 0.5A 5 to 1000A AC: 0 to 5A unspecified 5 to 1000A: ±(1% of Reading + 1A) |
| Resolution | 0.1A |
| Sample Rate | 64 samples/cycle |
| Storage Rate | Programmable from 8 every second to 1 every day |
| Storage Modes | Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView® |
| Memory | 240,000 measurement (512KB) Data is stored in non-volatile memory and retained if the battery is low or removed |
| Communication | USB 2.0 optically isolated |
| Channels | Two |
| Input | Captive MiniFlex® AC Current Flexible Sensors |
| Range and Accuracy | 0.5 to 100A AC: 0 to 1A unspecified 1 to 100A: ±(1% of Reading + 0.5A 5 to 1000A AC: 0 to 5A unspecified 5 to 1000A: ±(1% of Reading + 1A) |
| Resolution | 0.1A |
| Sample Rate | 64 samples/cycle |
| Storage Rate | Programmable from 8 every second to 1 every day |
| Storage Modes | Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView® |
| Memory | 240,000 measurement (512KB) Data is stored in non-volatile memory and retained if the battery is low or removed |
| Communication | USB 2.0 optically isolated |
