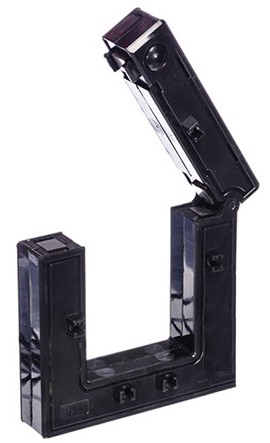

Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA

Model: AcuCT-200R-400:80mA

Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA-

Downloads: datasheet

Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA

Model: AcuCT-200R-400:80mA

Revenue grade, split-core current transformer features a window size of 2 x 2", current input of 400 A and output of 80 mA.

Revenue grade, split-core current transformer features a window size of 2 x 2", current input of 400 A and output of 80 mA.

Sale Price $122.82 CAD
Regular Price $133.50 CAD
Availability 1 to 2 Weeks
Quantity

Accuenergy AcuCT-200R-400:80mA Specifications

Input Range 5 A to 400 A
Output Option 80 mA
Window Size 2 x 2" (51 x 51 mm)
Exterior Dimensions 4.4 x 4.4 x 1.25" (111 x 111 x 32 mm)
Accuracy IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Square Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-200R-400:80mA

What's included with the Accuenergy AcuCT-200R-400:80mA

  • Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA
datasheet for the Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA

Ask a question about Accuenergy AcuCT-200R-400:80mA Split Core Current Transformer, 2 x 2", 400 A:80 mA

Customer Reviews for the Accuenergy AcuCT-200R-400:80mA

Accuenergy AcuCT-200R-400:80mA Specifications

Input Range 5 A to 400 A
Output Option 80 mA
Window Size 2 x 2" (51 x 51 mm)
Exterior Dimensions 4.4 x 4.4 x 1.25" (111 x 111 x 32 mm)
Accuracy IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Square Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-200R-400:80mA
