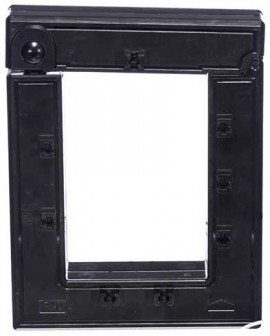

Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Model: AcuCT-5170R-3000:200mA

Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA-

Downloads: datasheet

Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Model: AcuCT-5170R-3000:200mA

Revenue grade, split-core current transformer features a window size of 5.1 x 7", current input of 3000 A and output of 200 mA.

Revenue grade, split-core current transformer features a window size of 5.1 x 7", current input of 3000 A and output of 200 mA.

Sale Price $476.10 CAD
Regular Price $517.50 CAD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 5170R Series Offers

Designed to be compact, simple and durable, these current transformers offer the highest accuracy while supporting the widest range of rated outputs.

Features

  • Up to 5000A AC current input range
  • Multiple output options including 5A, 1A, 80mA, 100mA, 200mA, 333mV
  • Sturdy latch locks the CT in place using a press-open mechanism for quick installation without disconnecting cables
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Multiple mounting options with included accessories

Accuenergy AcuCT-5170R-3000:200mA Specifications

Input Range 5A to 3000A
Output Option 200mA
Window Size 5.1 x 7" (130 x 180mm)
Exterior Dimensions 8.3 x 10.2 x 1.8" (210 x 260 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-5170R-3000:200mA

What's included with the Accuenergy AcuCT-5170R-3000:200mA

  • Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA
datasheet for the Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Ask a question about Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Customer Reviews for the Accuenergy AcuCT-5170R-3000:200mA

Accuenergy AcuCT 5170R Series Offers

Designed to be compact, simple and durable, these current transformers offer the highest accuracy while supporting the widest range of rated outputs.

Features

  • Up to 5000A AC current input range
  • Multiple output options including 5A, 1A, 80mA, 100mA, 200mA, 333mV
  • Sturdy latch locks the CT in place using a press-open mechanism for quick installation without disconnecting cables
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Multiple mounting options with included accessories
Show More...

Accuenergy AcuCT-5170R-3000:200mA Specifications

Input Range 5A to 3000A
Output Option 200mA
Window Size 5.1 x 7" (130 x 180mm)
Exterior Dimensions 8.3 x 10.2 x 1.8" (210 x 260 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-5170R-3000:200mA

What's included with the Accuenergy AcuCT-5170R-3000:200mA

  • Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA
datasheet for the Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Ask a question about Accuenergy AcuCT-5170R-3000:200mA Split Core Current Transformer, 5.1 x 7", 3000 A:200 mA

Customer Reviews for the Accuenergy AcuCT-5170R-3000:200mA
