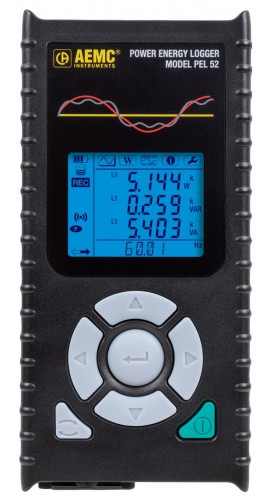

Easy to use, portable, and rugged, this single/dual-phase power and energy logger operates in 600 V CAT III or lower environments and records voltage, current, power, and energy on alternating current distribution networks. In addition, this analyzer features sensors, a large backlit LCD for crisp viewing and an SD card.
Easy to use, portable, and rugged, this single/dual-phase power and energy logger operates in 600 V CAT III or lower environments and records voltage, current, power, and energy on alternating current distribution networks. In addition, this analyzer features sensors, a large backlit LCD for crisp viewing and an SD card.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Compact enough to fit into various distribution panels, this power and energy analyzer features water and shock-resistant housing, operates on phase 1 input, and includes a backup battery that charges from the V1 input during measurements.
Features
Applications
| Key Specifications | |
| Inputs | 2V/2I |
| Types of Installations | Single-phase, split-phase, or two single-phase channels |
| Recording/Data Storage Rate | Unlimited duration (4 GB maximum recording size)/1 second to 1 hour (minimum/average/maximum) |
| Network Frequency | 45 to 65 Hz |
| Voltage | 10 to 600 V |
| Electrical | |
| Voltage | Range: Vrms: 10 to 660 V P to N Urms: 20 to 1200 V P to P Resolution: Vrms/Urms: 0.1 V Accuracy: Vrms: ±0.2% reading ±0.2 V Urms: ±0.2% reading ±0.4 V |
| Current Measurement at 50 and 60 Hz | Amps (1 V nominal); excluding clamp accuracy Range: Probe dependent (0.2% < I < 120% Inom) Resolution: Probe dependent Accuracy: ±0.2% reading ±0.02 Inom |
| Power | Watts P-Q-S (W-var-VA) Range: V = 100 to 660 V; I = 5 to 120% Inom Resolution: Probe dependent Accuracy: ±0.3% R ±0.003% Pnom ±1% R ±0.01% Qnom ±0.3% R ±0.003% Snom Power factor Range: -1 to 1 Resolution: 0.001 Accuracy: ±0.02% Cos φ (DPF): Range: -1 to 1 Resolution: 0.001 Accuracy: ±0.05% |
| Energy | Ep-Eq-Es (Wh, varh, VAh) Range: V = 100 to 660 V; I = 5 to 120% Inom Resolution: 0.001 and ±0.02% Accuracy: ±0.5% reading ±2.5% reading ±0.5% reading |
| General Specifications | |
| Communication | Wi-Fi (access point and hot spot) |
| Data Storage | 8 GB SD card (included); expandable to 32 GB |
| Display Type | LCD with blue backlight |
| Real-Time Clock | Time and date stamp for Trend mode |
| Environmental | Operating temperature/relative humidity: -4 to 122°F (-20 to 50°C)/10 to 85% RH Storage temperature/relative humidity: -40 to 158°F (-40 to 70°C)/0 to 95% RH without battery |
| Safety | Electro-Magnetic Compatibility (EMC): EN 61326-1 for emission and immunity Safety rating/CE rating: IEC/EN 61010-2-30 (600 V CAT III)/Yes IP rating: IP54 per IEC 60529 |
| Case | Compact and rugged, shock and vibration IEC 61010 |
| Power Supply | From phase 1, 90 to 660 V battery backup when power OFF Battery life: 3 hours without Wi-Fi, 1 hour typical with Wi-Fi enabled |
| Dimensions | 7.08 x 3.46 x 1.45" (180 x 88 x 37 mm) |
| Weight | 14.1 oz (400 g) |
