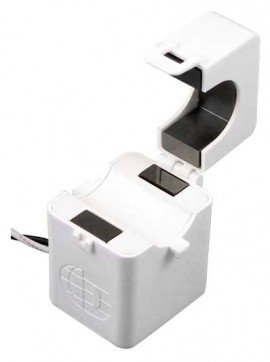

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Model: CT-HMC-0200-U-7M | Order No: CT-HMC-200-U-7M

Downloads: datasheet

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Model: CT-HMC-0200-U-7M | Order No: CT-HMC-200-U-7M

The midi hinged current transformer is for use with current measurement, energy metering, load surveys, demand metering, energy research, and sub-metering and has high performance, medium amperage, and 7 m leads.

Sale Price	$127.58 CAD
Regular Price	$135.00 CAD
Availability	1 Week
Quantity	Quantity

Traceable Calibration Certificate for your CT-HMC-200-U-7M Midi Hinged Current Transformer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 CAD

Traceable Calibration Certificate for your CT-HMC-200-U-7M Midi Hinged Current Transformer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 CAD

Dent CT-HMC-0200-U-7M Specifications

Window Size	1" (25 mm)
Current Range	1 - 300 A AC
Output	333 mV @ 200 A AC 1.67 mV/A AC
Ratio Error	<1% from 1 to 300 A AC (typical)
Phase Error	<0.5° from 1 to 300 A AC
Case Material	White Nylon, UL 94 V-0
Leads	600 V, 22 gage
Operating Temperature	5 to 140°F (-15 to 60°C)
Working Temperature	-4 to 185°F (-20 to 85°C)
Working Voltage	600 VAC, Category III
Dielectric Strength	5200 VAC for 1 minute
Safety Standards	UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1

Click here for complete specifications on the Dent CT-HMC-0200-U-7M

What's included with the Dent CT-HMC-0200-U-7M

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

datasheet for the DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Ask a question about DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Customer Reviews for the Dent CT-HMC-0200-U-7M

Specifications ➕➖

Dent CT-HMC-0200-U-7M Specifications

Window Size	1" (25 mm)
Current Range	1 - 300 A AC
Output	333 mV @ 200 A AC 1.67 mV/A AC
Ratio Error	<1% from 1 to 300 A AC (typical)
Phase Error	<0.5° from 1 to 300 A AC
Case Material	White Nylon, UL 94 V-0
Leads	600 V, 22 gage
Operating Temperature	5 to 140°F (-15 to 60°C)
Working Temperature	-4 to 185°F (-20 to 85°C)
Working Voltage	600 VAC, Category III
Dielectric Strength	5200 VAC for 1 minute
Safety Standards	UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1
