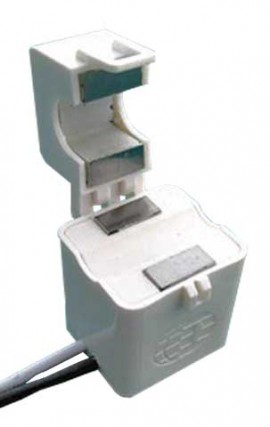

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 50A amp rating.
Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 50A amp rating.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
Applications
| Key Specifications | |
| Window Size | 0.4" (10 mm) |
| Current Range | 0.25 to 80 A AC |
| Output | 333 mV @ 50 A AC 6.66 mV/A AC |
| Ratio Error | <0.5% from 0.25 to 80 A AC (typical) |
| Phase Error | <1.5° from 1 to 80 A AC <2° from 0.25 to 1 A AC |
| Electrical | |
| Output | 333 mV @ 50 A |
| Wire Polarity | White = Hi, positive (+) Black = Low, negative (-) |
| Phasing Orientation | Arrow on case points toward load |
| Frequency Range | 50 to 400 Hz |
| Mechanical | |
| Case Material | White Nylon, UL 94 V‐0 |
| Leads | 8' (2.4 m), 600V, 20 gauge |
| Working Temperature | 5 to 140°F (‐15 to 60°C) |
| Safety | |
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 3520 VAC for 1 minute |
| Certification | Conforms to: UL STD 61010‐1 Certified to: CAN/CSA STD C22.2 No. 61010‐1 |
| Key Specifications | |
| Window Size | 0.4" (10 mm) |
| Current Range | 0.25 to 80 A AC |
| Output | 333 mV @ 50 A AC 6.66 mV/A AC |
| Ratio Error | <0.5% from 0.25 to 80 A AC (typical) |
| Phase Error | <1.5° from 1 to 80 A AC <2° from 0.25 to 1 A AC |
| Electrical | |
| Output | 333 mV @ 50 A |
| Wire Polarity | White = Hi, positive (+) Black = Low, negative (-) |
| Phasing Orientation | Arrow on case points toward load |
| Frequency Range | 50 to 400 Hz |
| Mechanical | |
| Case Material | White Nylon, UL 94 V‐0 |
| Leads | 8' (2.4 m), 600V, 20 gauge |
| Working Temperature | 5 to 140°F (‐15 to 60°C) |
| Safety | |
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 3520 VAC for 1 minute |
| Certification | Conforms to: UL STD 61010‐1 Certified to: CAN/CSA STD C22.2 No. 61010‐1 |
