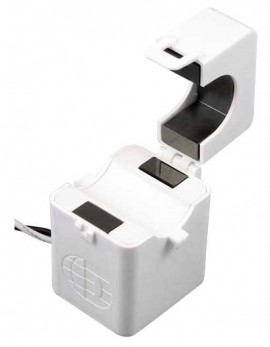

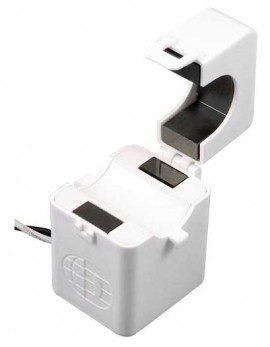

The mini hinged current transformer is ideal where space is limited such as when metering multiple loads within a panel board and has high accuracy over a wide dynamic range with an excellent phase shift.
The mini hinged current transformer is ideal where space is limited such as when metering multiple loads within a panel board and has high accuracy over a wide dynamic range with an excellent phase shift.
| Window Size | 0.4" (10 mm) |
| Current Range | 0.25 - 80 A AC |
| Output | 333 mV @ 50 A AC 6.66 mV/A AC |
| Ratio Error | <0.5% from 0.25 to 80 A AC (typical) |
| Phase Error | <1.5° from 1 to 80 A AC <2° From 0.25 to 1 A AC |
| Case Material | White Nylon, UL 94 V-0 |
| Leads | 600 V, 20 gage |
| Working Temperature | 5 to 140°F (-15 to 60°C) |
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 3520 VAC for 1 minute |
| Certification | Conforms to: UL STD 61010-1 Certified to: CAN/CSA STD C22.2 No. 61010-1 |
