Designed for use with portable PQ equipment, this 12in (30.48cm), micro-flex probe features 3 ranges from 3 to 3,000A, a 1.5V output and a Dranetz Hypertronics connector. It accepts a 4in (10.16cm) diameter maximum conductor size and is 1,000V max rated.
Designed for use with portable PQ equipment, this 12in (30.48cm), micro-flex probe features 3 ranges from 3 to 3,000A, a 1.5V output and a Dranetz Hypertronics connector. It accepts a 4in (10.16cm) diameter maximum conductor size and is 1,000V max rated.

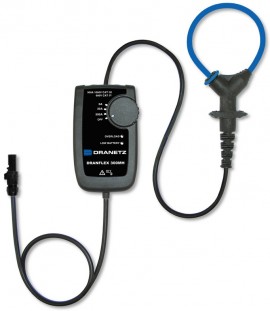

Dranetz DRANFLEX300MHB12 Micro-Flex Probes have a 1.5V output, Dranetz Hypertronics connector, 10' (3 m) cable, and are directly compatible with the following Dranetz products:
Adapters are available for use with other instrument configurations
Applications
| Range | 30 to 300 A |
| Amplitude Accuracy | 1% rdg ±0.1A |
| Phase Accuracy | ±1° |
| Frequency Range | 25 Hz to 70 kHz |
| Maximum Conductor Size | 4" (10.16 cm) |
| Rated Voltage | 1000 V maximum |
| Range | 30 to 300 A |
| Amplitude Accuracy | 1% rdg ±0.1A |
| Phase Accuracy | ±1° |
| Frequency Range | 25 Hz to 70 kHz |
| Maximum Conductor Size | 4" (10.16 cm) |
| Rated Voltage | 1000 V maximum |
