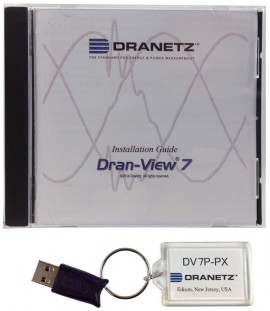

Dranetz DV7P-PX Offers

For use with the PX5, PX5-400, 4400, PowerVisa, EP1, PP1, PP4300, 658 and MeasurePAD.

Dran-View 7 is a Windows-based software package that enables power professionals to simply and quickly visualize and analyze power and energy monitoring data.

It's easy to navigate, delivers automated functionality and incorporates powerful analytical capabilities and customizable options to meet the needs of each individual user.

Provides an advanced analysis of sample points recorded and saved by your Dranetz instrument and presents the information in various forms, including Time Plots, Event Lists and Event detail. Due to the advanced design of the Dranetz event database, Time Plots and Event Detail graphs can be zoomed in to get to the detailed information.

Features

• Speed - Significantly faster waveform calculations and file loading
• Memory - Support for large data files; affects file compression (half-size of the original data) when saving DV6 documents
• New User Interface - Improved zoom and pan functions, drag-and-drop charts, insert pictures and photos, customize toolbars and more
• Flexibility - Customizable report presentations and math functions in a wide variety of situations
• Undo/Redo - Has an unlimited Undo/Redo queue
• Built-in Word Processor - Features an internal word processor; edit reports as they are generated, embed text documents within Dran-View files and more
• Improved Scaling of Harmonics - Use separate harmonic scaling for voltage, current and power parameters; for convenience, there's only 1 setting across the document; re-scales instrument as well as calculated harmonics
• Improved Format Templates - Format templates provide consistency in layout and format
• Web Updates - Automatic updates available via Internet

Enhancements for the Enterprise Edition

• Presentation of up to 16 simultaneous data sets emanating from different instrument models; this allows comparison of data from different sources in the same chart; performs mathematical calculations across sites
• Supports an unlimited number of presentation aids, such as charts, statistical tables and phasors in each window
• Uses simple, intuitive drag-and-drop function to manipulate screen items
• Supports a Harmonics/Timeplots Calculator for all file types resulting in more accurate harmonic calculations, more parameter calculations, etc.
• Allows fast and painless creation of print queues or restore program states
• Features an improved point-and-click formula editor
• Reads IEEE C37.111-1991/1999 COMTRADE and TXT/CSV data files

PC Requirements

• Operating System: Windows 7, 8 and 10
• Processor: Pentium Pro or higher
• Processor Clock Frequency: 1GHz or higher recommended
• Memory Requirements: 2GB (4GB recommended)
• Disk Requirements: 100MB for installation
• USB Port: Interface required for HASP security device
