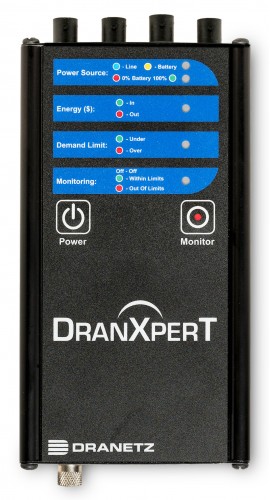

Portable and accurate, this power logger measures all of the power parameters expected, such as W, VA, VAR, PF, demand, and energy. Additionally, this logger measures the direction of power flow in DER/alternative energy applications and comes equipped with 3000 A Flex CT's.
Portable and accurate, this power logger measures all of the power parameters expected, such as W, VA, VAR, PF, demand, and energy. Additionally, this logger measures the direction of power flow in DER/alternative energy applications and comes equipped with 3000 A Flex CT's.
Due to limited inventory of this rental, please contact us for availability
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
| Voltage | Range: 90 to 600 Vrms CAT III Accuracy: 90 to 600 Vrms = ±0.1%, <90 Vrms = 0.5% Connections: 4 safety banana voltage inputs - 3 phase voltage and 1 neutral/reference |
| Current | Input: 0.333 Vrms full scale, Connections: BNC Accuracy: ±0.1% + probe |
| Frequency | Range: 50 Hz = 45 to 55 Hz, 60 Hz = 55 to 65 Hz Accuracy: 50/60 Hz: ±0.001 Hz |
| Power Quality | Sag/dip, swell trigger threshold resolution: 1 cycle Vthd: ±5% for V ≥ 10% Vnom Ithd: ±5% for I ≥ 10% Inom + probe error |
| Power | Line power supply Range: 90 to 264 VAC, 47 to 63 Hz, Consumption: 15 W maximum Line cords/plugs: Localized Internal battery Rechargeable lithium Ion battery pack (UL recognized) Run time: 7 hours (typical), Charge time: 15 hours (typical) |
| Communication | Ethernet: 10 USB: 2.0 Protocols: Modbus, Bacnet |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Storage Temperature | 5 to 131°F (-15 to 55°C) |
| Humidity | 5 to 95% non-condensing |
| Ingress Protection | IP50 (vertical position) |
| Dimensions | 3.5 x 2.2 x 7.4" (6.4 x 8.9 x 18.8 cm) |
| Weight | 1.4 lbs (0.64 kg) |
| Voltage | Range: 90 to 600 Vrms CAT III Accuracy: 90 to 600 Vrms = ±0.1%, <90 Vrms = 0.5% Connections: 4 safety banana voltage inputs - 3 phase voltage and 1 neutral/reference |
| Current | Input: 0.333 Vrms full scale, Connections: BNC Accuracy: ±0.1% + probe |
| Frequency | Range: 50 Hz = 45 to 55 Hz, 60 Hz = 55 to 65 Hz Accuracy: 50/60 Hz: ±0.001 Hz |
| Power Quality | Sag/dip, swell trigger threshold resolution: 1 cycle Vthd: ±5% for V ≥ 10% Vnom Ithd: ±5% for I ≥ 10% Inom + probe error |
| Power | Line power supply Range: 90 to 264 VAC, 47 to 63 Hz, Consumption: 15 W maximum Line cords/plugs: Localized Internal battery Rechargeable lithium Ion battery pack (UL recognized) Run time: 7 hours (typical), Charge time: 15 hours (typical) |
| Communication | Ethernet: 10 USB: 2.0 Protocols: Modbus, Bacnet |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Storage Temperature | 5 to 131°F (-15 to 55°C) |
| Humidity | 5 to 95% non-condensing |
| Ingress Protection | IP50 (vertical position) |
| Dimensions | 3.5 x 2.2 x 7.4" (6.4 x 8.9 x 18.8 cm) |
| Weight | 1.4 lbs (0.64 kg) |
