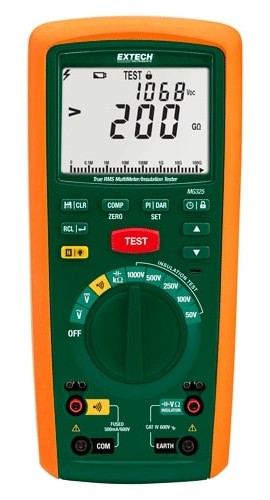

Test insulation and check the voltage with this instrument that combines a CAT IV Insulation Tester and a 200 GΩ True RMS Multimeter. Complete with PI/DAR modes, a programmable timer, and a comparator for custom test configurations, this multimeter is versatile and provides quick insulation test results. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Test insulation and check the voltage with this instrument that combines a CAT IV Insulation Tester and a 200 GΩ True RMS Multimeter. Complete with PI/DAR modes, a programmable timer, and a comparator for custom test configurations, this multimeter is versatile and provides quick insulation test results. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| Insulation Resistance | 50 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 2000 MΩ, 1 GΩ, 10 GΩ, 20 GΩ, 50 GΩ, 100 GΩ, 200 GΩ |
| Basic Accuracy | ±(3% + 3d) |
| Resolution | 0.001 MΩ |
| Insulation Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Basic Accuracy | 0 to 20% |
| AC/DC Voltage | Range: 600 V Resolution: 0.01 V Accuracy: AC: ±(1.5%+5d) DC: ±(2% + 3d) |
| Leakage Current | Range: 2000 µA Resolution: 10 µA Accuracy: ±(10% + 3d) |
| Resistance | Range: 10 MΩ Resolution: 0.01 kΩ Accuracy: ±(3% + 3d) |
| Low Resistance | Range: 100 Ω Resolution: 0.01 Ω Accuracy: ±(1.5% + 5d) |
| Capacitance | Range: 500 µF Resolution: 0.1 nF Accuracy: ±(5% + 5d) |
