Detect fast voltage transients (spikes) to troubleshoot industrial installations and more. This model permits an easy and wide fast analysis of a huge quantity of data.
Detect fast voltage transients (spikes) to troubleshoot industrial installations and more. This model permits an easy and wide fast analysis of a huge quantity of data.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Portable Power Quality Analyzers category for similar products.
Or let's do a search and help you find what you need:

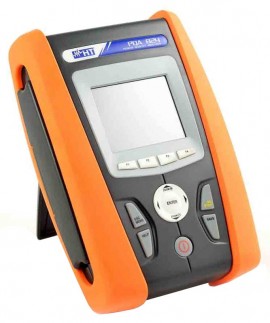

This Power Quality Analyzer permits the user to carry out analysis of harmonics, cosphi, powers on all phases, display of waveforms and vector quantities providing the user with a section called oscilloscope. Before starting a recording the instrument shows a series of system confi gurations: 4-wire, 3-wire, single, ARON so giving the user the opportunity to defi ne clamp meter type STD or FLEX, clamp's full scale, system frequency as well as interface with voltage transformers (TV) of the installation under test displaying the value of voltages on the primary side of the transformers themselves
Features
Applications
Ideal for the following applications: Testing and analyzing quality of the electric service provided by the Electric Power Supplier, analyzing single-phase and three-phase electric users such as offices and industries, and diagnosing voltage anomalies.
| Display | 320 x 240 graphical color TFT |
| Internal Memory | 15 Mbytes |
| TRMS AC/DC phase - Neutral/Phase - Ground Voltage, Single/Three Phase Systems | |
|---|---|
| Range | 2 to 600 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5% rdg + 2 dgt) |
| Input impedance | 10 MΩ |
| TRMS AC/DC phase - Phase Voltage, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5% rdg + 2 dgt) |
| Input Impedance | 10 MΩ |
| Phase - Neutral Voltage Anomalies, Single/Three Phase Systems | |
| Range | 2 to 600 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
| Phase - Phase Voltage Anomalies, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
Click on a category to view a selection of compatible accessories with the HT Instruments PQA824 CAT IV Power Quality Analyzer 4 CTs, HTFLEX33.
