Use to test and analyze quality of the electric service provided by the Electric Power Supplier, for analyzing single-phase and three-phase electric users such as offices and plants.
Use to test and analyze quality of the electric service provided by the Electric Power Supplier, for analyzing single-phase and three-phase electric users such as offices and plants.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:

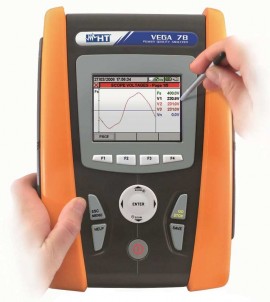

Carry out analysis and tests on single-phase and three-phase electric systems with and without a neutral with the VEGA78. Display in real time the values of all fundamental electric quantities which characterize the electric system being tested (voltage, current, active power, reactive power, apparent power, power factor) showing the waveforms of voltages and currents.
Features
Applications
Ideal for the following applications: Testing and analyzing quality of the electric service provided by the Electric Power Supplier, analyzing single-phase and three-phase electric users such as offices and industries, and diagnosing voltage anomalies.
| Display | Graphic TFT with backlight (320 x 240) |
| Integration Period | 1 sec, 2 sec, 5 sec, 10 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, 60 min |
| Values Saved | MIN, AVG and MAX values |
| Max Parameter Storage | 251 |
| Memory | > 3 months @ 251 parameters and integration period = 15 min |
| Internal Memory | 15 Mbyte |
| Safety | IEC/EN61010-1, IEC/EN61010-031, IEC/EN61010-2-032 |
| Overvoltage Category | CAT IV 600 V to ground, max 1000 V between inputs |
Click on a category to view a selection of compatible accessories with the HT Instruments VEGA78 CAT IV Power Quality Analyzer and Energy Logger with 4 CTs, HTFLEX33D.
