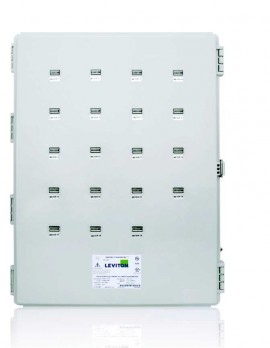

120/208V, single phase, 3 wire setup with 7 dual element meters.
120/208V, single phase, 3 wire setup with 7 dual element meters.
VerifEye Mini Meter (kWh) Multiple Meter Units (MMUs) are designed for multi-tenant submetering applications in which multiple single phase (120/240V 1PH 3W and 120/208V 2PH 3W) loads are fed from the same power distribution panel.Each VerifEye Mini Meter installed in an MMU is a revenue-grade*, ANSI C12.1-compliant energy meter that is backed by Leviton's best in the industry 10-year warranty. Mini Meter MMUs are NEMA 4X rated and UL Listed, suitable for either indoor or outdoor installations. Each Mini meter has built-in pulse outputs for connection to Automatic Meter Reading equipment as well as on-site kWh displays.
Applications
Ideal for the following applications: Power Quality Analysis, Usage Aggregation, Tenant Cost Allocation, Measurement and Verification, Net Metering, Energy Conservation and Cost Reduction.
