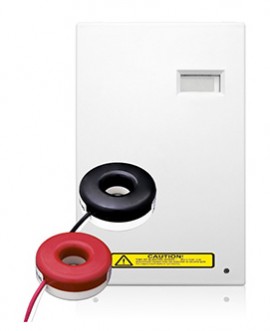

The Leviton 6PSMT-C02 0.5% mini meter kit offers a fully integrated, line-powered wireless Automated Meter Readings (AMR) solution with 0.5% accuracy for multi-tenant applications. It offers an all-in-one, low cost bundled solution for tenant billing applications, new construction and retrofits.
The Leviton 6PSMT-C02 0.5% mini meter kit offers a fully integrated, line-powered wireless Automated Meter Readings (AMR) solution with 0.5% accuracy for multi-tenant applications. It offers an all-in-one, low cost bundled solution for tenant billing applications, new construction and retrofits.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
Applications
Use 0.5% Indoor Mini Meters in multi-tenant residential and certain commercial industrial applications for:
| Electrical | |
| Input Configurations | 1 or 2 Phase, 3 Wire |
| Supply Voltage Range (L1 or L2 to Neutral) | 102 to 138 VAC |
| Maximum Input Power, L1 and L2 | 8 VA |
| Maximum Rated Current | 220 A Primary 0.11 A Secondary |
| Line Frequency | 60 Hz |
| Power Factor Range | 0.5 to 1.0, Leading or Lagging |
| Accuracy | +/- 0.5% of Registration @ 1.0pf. 2 to 200 A |
| Operating Temperature Range | -20 to 50°C |
| Rated Pollution Degree | 2 |
| Rated Relative Humidity | 80% |
| Terminal Blocks: Dinkle/International Connector EK508-11P or equiv. | 4.4 in-lb of torque maximum |
| Voltage Inputs | |
| L1 | Black Wire, Voltage Input, Line 1, 120V with Respect to Neutral |
| N | White Wire, Neutral Input |
| L2 | Red Wire, Voltage Input, Line 2, 120V with Respect to Neutral |
| CT Inputs | |
| CT1: X1 | Current Transformer Input, CT1. Colored Wire of CT1 |
| CT1: X2 | Current Transformer Input, CT1. White Wire of CT1 |
| CT2: X1 | Current Transformer Input, CT2. Colored Wire of CT2 |
| CT2: X2 | Current Transformer Input, CT2. White Wire of CT2 |
| Outputs | |
| 10, Isolated Output (10 Wh/P, Kh = 10) | Isolated Pulse Output: 5 watthours on, 5 watthours off, referenced to ISOL COM. Connected at factory to wireless transceiver. |
| 100, Isolated Output (100 Wh/P, Kh=100) | Isolated Pulse Output: 50 watthours on, 50 watthours off, referenced to ISOL COM |
| 1000, Isolated Output (1 kWh/P, Kh=1000) | Isolated Pulse Output: 500 watthours on, 500 watthours off, referenced to ISOL COM (not available on models with T suffix) |
| ISOL COM | Isolated common for 10/100/1000 isolated outputs |
| Counter (kh = 100 or kh = 1000) | For 12 VDC Electro-Mechanical Counter |
| Counter (kh = 100 or kh = 1000) | For 12 VDC Electro-Mechanical Counter |
| +12 VDC | 12 VDC Output @ 3 mA max. |
| LED Indicators | |
| Power LED (Green) | Illuminates when the meter is supplied with proper voltage |
| Load LED (Green) | 50% duty cycle (at constant load) LED to verify proper meter function when connected to a load. At 200 watts, LED will illuminate for 1.5 minutes, then turn off for 1.5 minutes; with no load, LED will remain on or off |
| Reverse Phase LED (Red) | Illuminates when a problem with meter phasing exists. With no load, LED may be on or off. See section 3.7 for CT installation instructions |
| LCD Display | LCD Displays Shows Total kWh |
