The enclosed relay current switch offers a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package, it eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation.
The enclosed relay current switch offers a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package, it eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation.

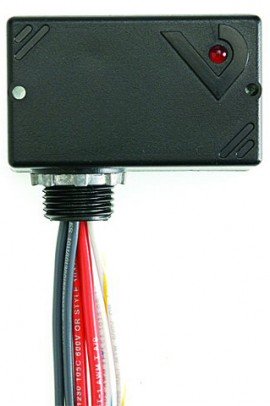

The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.
Features
Applications
| Amperage Range | 0.1 to 20 A |
| Sensor Power | Induced from relay coil power |
| Operating Temperature | 5 to 140°F (-15 to 60°C) (13.8 A maximum) 5 to 12°F (-15 to 50°C) (2 A maximum) |
| Operating Humidity | 10 to 90% RH non-condensing |
| Expected Relay Life (mechanical) | 10 million cycles |
| Relay Status | LED ON=energized |
| Status Output | N.O. 100 mA at 30 V AC/DC |
| Style and Gauge | UL1015 Coil: 18 AWG Contacts: 12 AWG Status: 16 AWG |
| Lead Length | 14" (356 mm) minimum |
| Amperage Range | 0.1 to 20 A |
| Sensor Power | Induced from relay coil power |
| Operating Temperature | 5 to 140°F (-15 to 60°C) (13.8 A maximum) 5 to 12°F (-15 to 50°C) (2 A maximum) |
| Operating Humidity | 10 to 90% RH non-condensing |
| Expected Relay Life (mechanical) | 10 million cycles |
| Relay Status | LED ON=energized |
| Status Output | N.O. 100 mA at 30 V AC/DC |
| Style and Gauge | UL1015 Coil: 18 AWG Contacts: 12 AWG Status: 16 AWG |
| Lead Length | 14" (356 mm) minimum |
