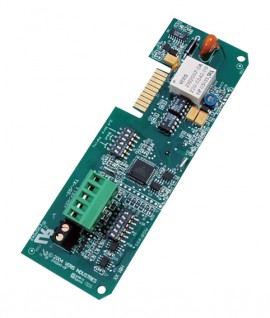

The communications board is designed to work with the H81xx Series energy meters. It easily connects to the meter to control data systems networks using BACnet protocol. It also reports energy and power diagnostic information including kW, kWh, kVAR, PF, amps, volts, and more.
The communications board is designed to work with the H81xx Series energy meters. It easily connects to the meter to control data systems networks using BACnet protocol. It also reports energy and power diagnostic information including kW, kWh, kVAR, PF, amps, volts, and more.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The H8186-CB is easy to install in the field. On-board switches provide a convenient means of setting network configuration parameters such as baud rate. Status LEDs provide quick confirmation of successful installation.
| Output Type | BACnet |
| Connection | 2-wire |
| Baud Rate | 9600, 19200, 38400 |
| Address Range | 1 to 63 |
| Output Type | BACnet |
| Connection | 2-wire |
| Baud Rate | 9600, 19200, 38400 |
| Address Range | 1 to 63 |
