Designed to be compact, durable, and to provide ease-of-use. The PowerPad III is capable of analyzing energy parameters on one-, two-, or three-phase systems. This PQ analyzer provides accurate measurement of TRMS voltages up to 1000Vrms and provides direct measurement of neutral current and voltage. The 8435 incorporates four voltage and four current inputs and can store up to 210 captured transients.
Designed to be compact, durable, and to provide ease-of-use. The PowerPad III is capable of analyzing energy parameters on one-, two-, or three-phase systems. This PQ analyzer provides accurate measurement of TRMS voltages up to 1000Vrms and provides direct measurement of neutral current and voltage. The 8435 incorporates four voltage and four current inputs and can store up to 210 captured transients.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Portable Power Quality Analyzers category for similar products.
Or let's do a search and help you find what you need:

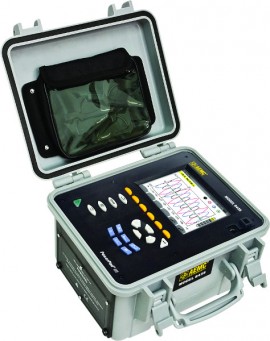

The AEMC 8435 PowerPad III three-phase power quality analyzer is designed to be compact, durable, and easy to use. Capable of diagnosing one, two, and three-phase systems, with four current inputs, the PowerPad III can store up to 210 captured Transients which contain four cycles for each active input.
Able to measure TRMS voltages up to 1000Vrms AC/DC, in addition to measuring neutral current and voltage, frequency of 40 to 70Hz systems and harmonics.This instrument is ideal for troubleshooting power distribution, energy metering, and determining harmonics problems.
With a 2GB SD card for storing trend data and the included DataView software, reporting is simple. The PowerPad III is able to display and record trend data as fast as once per second for up to 25 variables continuously for up to one month. You'll also be able to store up to 10,000 alarm events, triggered by up to 40 energy parameters.
Features
Applications
| Sampling Frequency | 256 samples/cycle |
| Data Storage | 2GB SD Card for trend reporting Additional separate 12.5MB partitioned memory for snapshots, transient/inrush & alarms |
| Voltage (TRMS) | Phase-to-Phase: 2000V Phase-to-Neutral: 1000V Voltage Ratio: up to 500kV |
| Current (TRMS) | MN Clamp: 0 to 6A/120A or 0 to 240A SR Clamp: 0 to 120A MR Clamp: 0 to 1000A AC, 0 to 1400A DC MiniFlex: 10 to 1000A AmpFlex: 10 to 6500A Current Ratio: 10mA to 50kA |
| Frequency (Hz) | 40 to 69Hz |
| Other Measurements | kW, kVAR, kVA, PF, DPF, kWh, kVARh, kV, K-Factor, Flicker |
Click on a category to view a selection of compatible accessories with the AEMC 8435 PowerPad III True RMS Power Quality Analyzer, Waterproof IP67, 3 Phase, 40 to 69Hz.
| Sampling Frequency | 256 samples/cycle |
| Data Storage | 2GB SD Card for trend reporting Additional separate 12.5MB partitioned memory for snapshots, transient/inrush & alarms |
| Voltage (TRMS) | Phase-to-Phase: 2000V Phase-to-Neutral: 1000V Voltage Ratio: up to 500kV |
| Current (TRMS) | MN Clamp: 0 to 6A/120A or 0 to 240A SR Clamp: 0 to 120A MR Clamp: 0 to 1000A AC, 0 to 1400A DC MiniFlex: 10 to 1000A AmpFlex: 10 to 6500A Current Ratio: 10mA to 50kA |
| Frequency (Hz) | 40 to 69Hz |
| Other Measurements | kW, kVAR, kVA, PF, DPF, kWh, kVARh, kV, K-Factor, Flicker |
