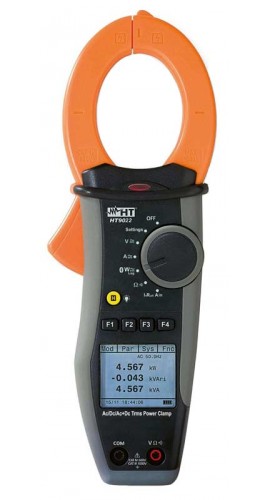

HT Instruments HT9022 Power Quality Logger Clamp Meter with Bluetooth

Model: HT9022

HT Instruments HT9022 Power Quality Logger Clamp Meter with Bluetooth-

Downloads: datasheet manual

HT Instruments HT9022 Power Quality Logger Clamp Meter with Bluetooth

Model: HT9022

This four-in-one meter troubleshoots power quality problems, calculates power factor, records energy consumption and DC power.

This four-in-one meter troubleshoots power quality problems, calculates power factor, records energy consumption and DC power.

Your Price $1389.00 CAD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT9022 Power Quality Logger Clamp Meter with Bluetooth

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT9022 Power Quality Logger Clamp Meter with Bluetooth

HT Instruments HT9022 Power Quality Logger Clamp Meter Offers

Simultaneously record Power AC/DC, Voltage, Current, Power Factor, Cosphi, Harmonics and THD%. This power logger meter combines a power quality analyzer, a phase sequence/conformity detector, a clamp meter and a voltage detector in one single device.

Features

  • DC, AC + DC TRMS current up to 1000A
  • DC, AC + DC TRMS voltage up to 1000V
  • Resistance and continuity test
  • Frequency with test leads
  • Frequency with jaws
  • Phase sequence / 1 wire phase correlation
  • DC Power
  • Active, Reactive, Apparent power on Single phase systems
  • Active, Reactive energy on Single phase systems
  • Power Factor on Single phase systems
  • Harmonic voltage/current up to 25th with THD% calculation
  • Inrush current
  • Data logger with programmable IP
  • Autoranging
  • Backlight
  • Auto Power OFF
  • Data HOLD
  • MAX/MIN/CREST
  • PC connection via Bluetooth
  • Connection with Android devices
  • CAT IV 600V

Applications

Ideal for the following applications: Troubleshoot power quality problems, calculate power factor correctors, record energy consumption, record DC power.

HT Instruments HT9022 Specifications

DC Voltage
Range 0.5 to 999.9 V
Resolution 0.1 V
Accuracy ±(1.0%rdg + 4dgt)
Overload Protection 1000 V DC/AC rms
AC Voltage
Range 0.5 to 999.9 V
Resolution 0.1 V
Accuracy 43 to 63 Hz: ±(1.0%rdg + 3dgt)
10 to 43 Hz, 63 to 400 Hz: ±(3.5%rdg + 3dgt)
Overload Protection 1000 V DC/AC rms
General Specifications
Dimensions 252 x 88 x 44 mm
Weight 420 g
Click here for complete specifications on the HT Instruments HT9022

What's included with the HT Instruments HT9022

  • Power Quality Logger Clamp Meter
  • ISO9000 Calibration Certificate
  • 2 x Test Leads
  • 2 x Alligator Clips
  • Carrying Bag
  • PC Windows Software
  • 2 x 1.5 V Batteries
  • User Manual on CD
  • Quick Reference Guide
